601 features a polypropylene channel with Class B rated galvanised grates. Each galvanised grate comes with a 2 point security fixing, to keep it rattle free from vehicular movements and secure it from unauthorised access. Heel guard type grate, preventing heeled shoes & other objects from becoming caught in the grate.

Ideal for driveway drainage, use around gardens, footpaths, schools, pathways, petrol stations, walkways, decks & outdoor areas, universities, aged care facilities, around equestrian stables, barns and much more.

Class B
Class B
Heel Guard
Heel Guard
Lockdown
Lockdown
Disability Compliant
Disability Compliant

Range

Internal MeasurementExternal Measurement
100mm x 50mm150mm x 100mmRead more
100mm x 100mm150mm x 150mmRead more
100mm x 150mm150mm x 200mmRead more
150mm x 100mm200mm x 150mmRead more
150mm x 150mm200mm x 200mmRead more
200mm x 50mm250mm x 100mmRead more
200mm x 100mm250mm x 150mmRead more
200mm x 150mm250mm x 200mmRead more
200mm x 200mm250mm x 250mmRead more
200mm x 250mm250mm x 300mmRead more
200mm x 300mm250mm x 350mmRead more

Drains

601 Channel Diagram

Drains

Product CodeLHL1H1D1D2D3D4D5S1S2AKG
DR601100501005015010040--401001106310005.6
DR601100100100100150150639063631001106310006.4
DR60110015010015015020063110631101001106310006.9
DR601150100150100200150639063631501106310008.3
DR60115015015015020020063110631101501106310009.0
DR601200502005025010040--40200160110100010
DR60120010020010025015063906363200160110100012.1
DR601200150200150250200631106390200160110100012.6
DR6012002002002002502506316011090200160110100013.1
DR6012002502002502503006316011090200160110100013.6
DR6012003002003002503506316011090200160110100014.1

Grates

601 Grate Diagram

Grates

CodeMaterialDrain Cm²AHH1LFLoad ClassKG
DR601GRATE100Galvanised8001452025100031 X 8Residential, A, B3.8
DR601GRATE150Galvanised12411952030100031 X 8Residential, A, B5.4
DR601GRATE200Galvanised14852452030100031 X 8Residential, A, B8.6

Frequently
Asked Questions

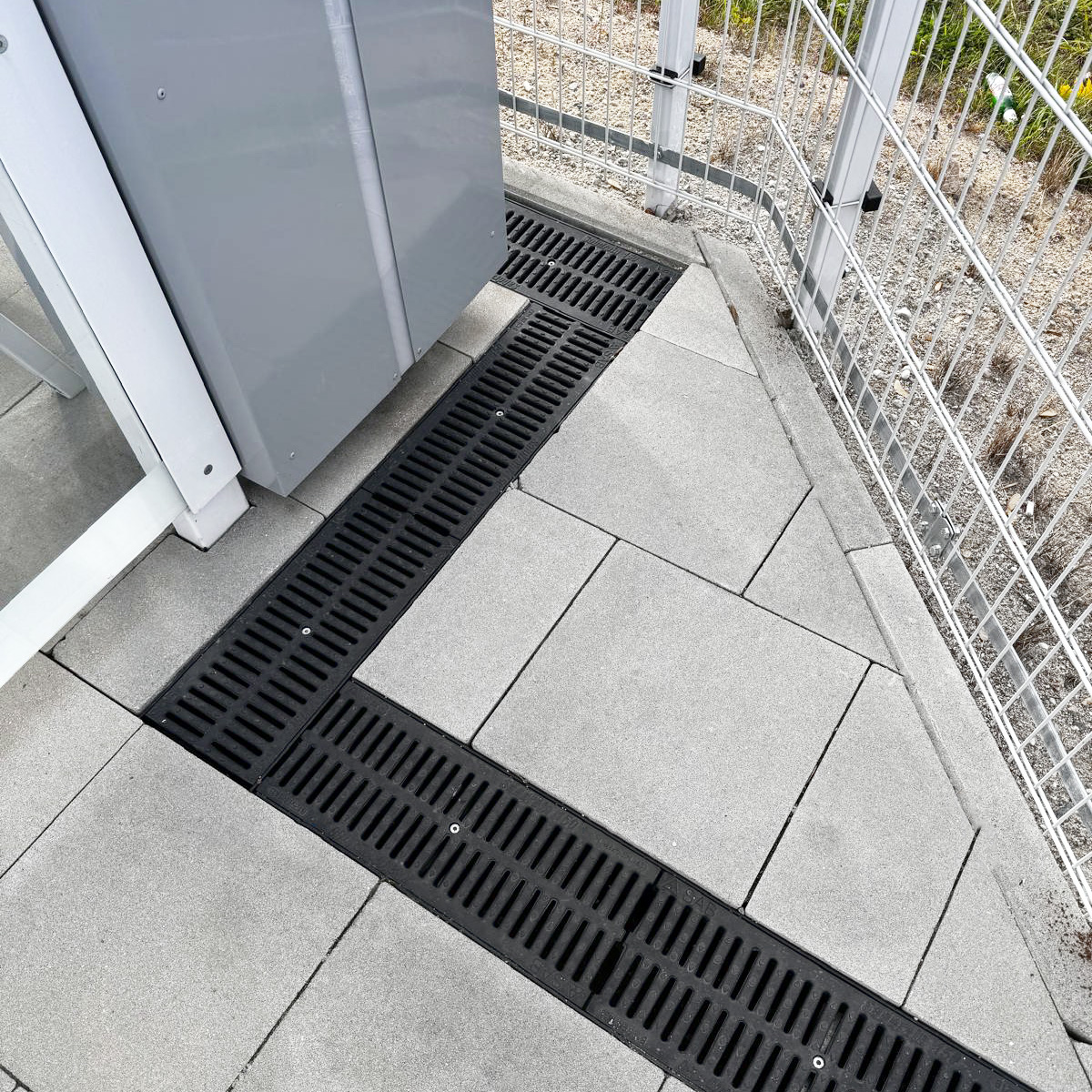

How to create a corner/90 degree angle with SABdrain channels?

SAB channels have preset lateral connection for 90 degree joining of 2 channel units together. Allows right angles, corners, tees & crosses without any additional fittings.

Corner 1024x662

SAB channels have preset lateral connection for 90 degree joining of 2 channel units together. Allows right angles, corners, tees & crosses without any additional fittings.

Cut out the highlighted section above & join the channels.

Where are SABdrain channels & grates made?

SABdrain channels are manufactured & shipped out of Italy. Grates are a mix of overseas & local suppliers.

Where can I purchase SABdrain?

We have over 800 distributors Australia wide. Find your nearest one here.

Alternatively, contact us & we can assist you.

Load Classes Explained

The load rating of a grate is a specification of the amount of weight the grate can withstand.

Residential- Will withstand 1.5 ton wheel loading. Footpaths & driveways.

Class A – 330kg nominal wheel loading. Pedestrians, cyclists.

Class B – 2,670kg nominal wheel loading. Driveways (cars & light commercial vehicles)

Class C – 5,000kg nominal wheel loading. Areas with slow moving traffic (shopping centres). Heavy commercial vehicles.

Class D – 8,000kg nominal wheel loading. Highways & roads, lightly loaded forklift, warehouse

Class E – 13,700kg nominal wheel loading. Commercial heavy wheeled traffic, hard wheeled forklifts, construction/military/mining vehicles

Class F – 20,000 nominal wheel loading. Docks, wharves, airport taxiways

Class G – 30,000 nominal wheel loading. Extra heavy duty, airport runways, docks

View our guide to load class classifications here.

What sizes are available?

Our channels range from 100mm x 50mm – 500mm x 500mm

Is 601 heel guard?

Yes, the aperture of 601 grate is 8mm.
