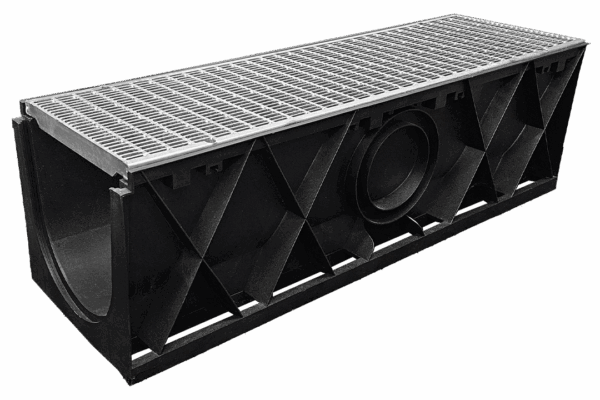

Polypropylene channel with Class B rated galvanised grates. Each galvanised gate comes with a 2 point security fixing, to keep it rattle free from vehicular movements and secure it from unauthorised access. Heel guard type grate, preventing heeled shoes & other objects from becoming caught in the grate. Ideal for driveway drainage, use around gardens, footpaths, schools, pathways, petrol stations, walkways, decks & outdoor areas, universities, aged care facilities, around equestrian stables, barns and much more.
611
Try our Product Finder
Use Product FinderBrochure
Reach Us
![Class B](https://sabdrain.com.au/wp-content/uploads/Class-B-1.png)
Class B
![Heel Guard](https://sabdrain.com.au/wp-content/uploads/Heel-Guard-1.png)
Heel Guard
![Lockdown](https://sabdrain.com.au/wp-content/uploads/Lockdown-1.png)
Lockdown
![Disability Compliant](https://sabdrain.com.au/wp-content/uploads/Compliant-for-Wheelchair-Walking-Cane-1-1.png)
Disability Compliant
Range
Internal Measurement | External Measurement | |
---|---|---|
250mm x 250mm | 318mm x 304mm | Read more |
Drains
![Alternato Channel Diagram](https://sabdrain.com.au/wp-content/uploads/Alternato-Channel-Diagram-1920x815.jpg)
Drains
Product Code | L | H | L1 | H1 | D1 | D2 | D3 | D4 | D5 | S1 | S2 | A | KG |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DR611250250 | 250 | 250 | 318 | 304 | - | 198 | 148 | - | - | 148 | 98 | 1000 | 3.95 |
Grates
![611 Grate Diagrm](https://sabdrain.com.au/wp-content/uploads/611-grate-diagrm.png)
Grates
Code | Material | Drain Cm² | A | H | H1 | L | F | Load Class | KG |
---|---|---|---|---|---|---|---|---|---|
DR611GRATE250 | Galvanised | 1612 | 295 | 20 | - | 1000 | 33.1mm X 8.5mm | B | 8.6 |
![611](https://sabdrain.com.au/wp-content/uploads/611.png)
DR611GRATE250
SAB611 Galvanised Grate 295mm X 1MFrequently
