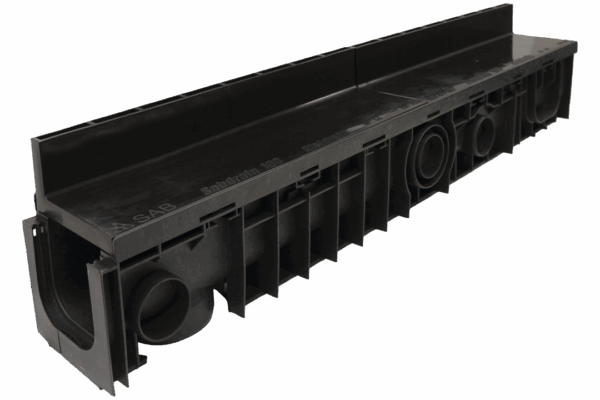

Polypropylene channel with Class A rated polypropylene slot grates. Use SABdrain slot drain a discreet drainage solution, providing an aesthetic finish to the installation area. Drainage capacity of 118 cm2 per linear meter.
Slot Drain – Polypropylene
Try our Product Finder
Use Product FinderBrochure
Reach Us
Class A
Disability Compliant
Drains
Drains
| Product Code | L | H | L1 | H1 | D1 | D2 | D3 | D4 | D5 | S1 | S2 | A | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR37010050 | 100 | 50 | 150 | 100 | 40 | - | - | 40 | 100 | 63 | 110 | 1000 | 2.94 |
| DR370100100 | 100 | 100 | 150 | 150 | 63 | 90 | 63 | 63 | 100 | 63 | 110 | 1000 | 3.5 |
| DR370100150 | 100 | 150 | 150 | 200 | 63 | 110 | 63 | 110 | 100 | 63 | 110 | 1000 | 4.04 |
DR37010050
SAB370 Slot Drain 100mm X 50mm
DR370100100
SAB370 Slot Drain 100mm X 100mmDR370100150
SAB370 Slot Drain 100mm X 150mmGrates
Grates
| Code | Material | Drain Cm² | A | H | H1 | L | F | Load Class | KG |
|---|---|---|---|---|---|---|---|---|---|
| DR370GRID100 | Polypropylene | 118 | 145 | 20 | 120 | 500mm (sold in 1M lengths) | 12 | Residential, A | 1.14 |
